Features:

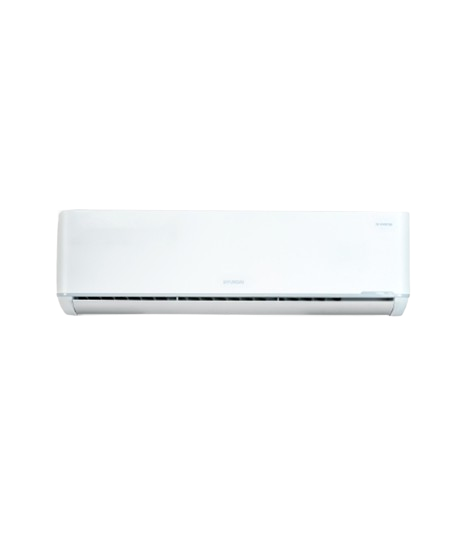

- Model HAC-18KV
- Type Heating pump
- Control type Remote
- Power supply Ph.-V-Hz 1Ph-220-240V~50Hz
- Voltage Range V 155~265
- Cooling Capacity Btu/h 18000(4000~19500)
- Capacity W 5323(1200~5650)
- Rated power Input W 1600(300~2700)
- Rated current A 7.31.4~12.1)
- EER W/W 3.32
- Max power Input W 2700
- Max current A 12.1
- Heating Capacity Btu/h 19000(5100~19800)
- Capacity W 5650(1500~5950)
- Rated power Input W 1450(300~2500)
- Rated current A 6.7(1.4~13.0)
- COP W/W 3.80
- Max power Input W 2500
- Max current A 13.0
- Moisture removal Liters/h 1.8
- Indoor noise level dB(A) 46
- Outdoor noise level dB(A) 49
- Compressor Model C-6RZ146H1DJ
- Type Rotary
- Brand SANYO
- Indoor air flow (Hi/MI/Lo) m3/h 1100
- Indoor unit Dimension(W*D*H) mm 1097×332×222
- Packing (W*D*H) mm 1160×393×303
- Net/Gross weight Kg 15/19
- Outdoor unit Dimension(W*D*H) mm 780×290×605
- Packing (W*D*H) mm 890×385×628
- Net/Gross weight Kg 32/37(with pipe)
- Refrigerant piping Liquid side/ Gas side mm(inch) φ6(1/4″)/φ9(3/8″)
- Max. refrigerant pipe length m 15
- Max. difference in level m 5
- Pressure High(DP) MPa4.5
- Low(SP) MPa1.9
- Refrigerant R410A / 1.25kg
- Ambient temperature ℃ -15~50
- Suitable area m2 20~35
- Connecting Wiring
- Size x Core number 4×1.5mm2
- Power supply cord 1.5mm2 H05VV-F
